With self-developed SiC MOSFET and SiC SBD, modules' peak efficiency surpass 96.5%. They boast a wide constant power voltage range, high efficiency, high power factor, high power density, efficient heat dissipation and extremely low electromagnetic radiation and interference, which enable our products to meet fast charging needs of various application scenarios and charging in harsh environments.
20kg
ITHD <=3%
Ripple PTP,=1%
MTBF > 500,000 hours
Rated Current 30-40A
Constant power output：300VDC~1000VDC
Temperature range: -40℃~+75℃
High Reliability
Dual DSP design

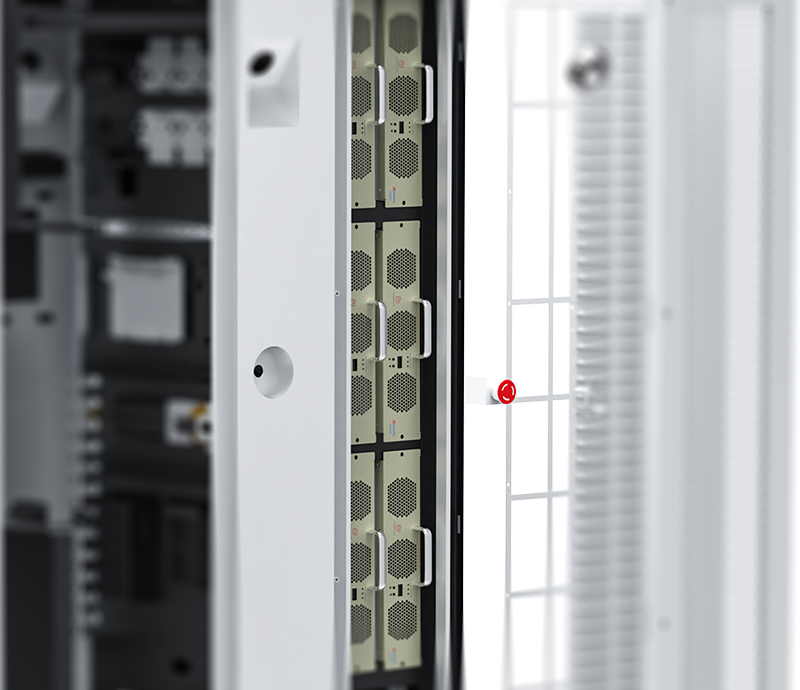

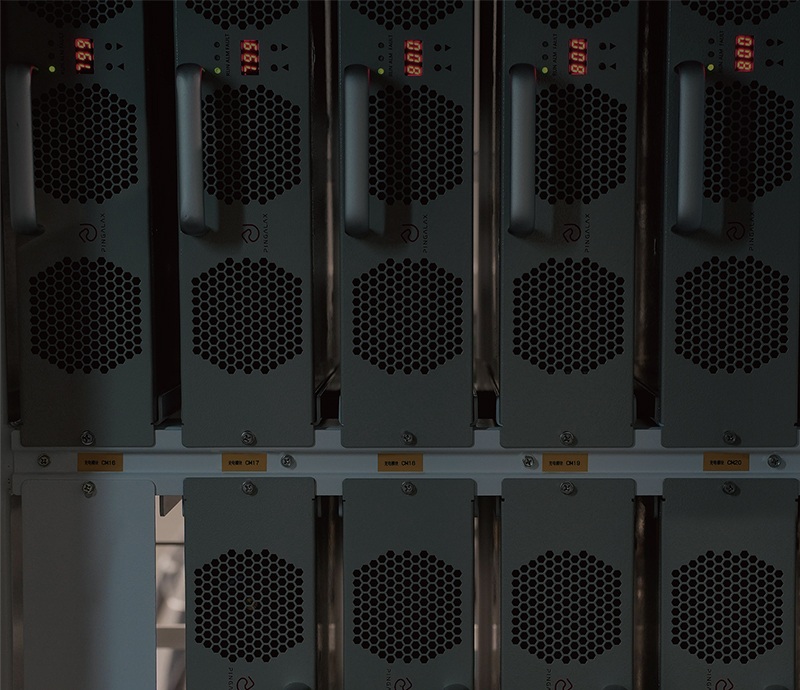

Max. Number of parallel modules: 60
With self-developed SiC MOSFET and SiC SBD, modules' peak efficiency surpass 96.5%.
When the rated voltage is input, the P100030 module allows an output power of 30kW, and the P100040 module allows an output power of 40kW. The relationship between the module output voltage and output current is shown in the figure.
Below an ambient temperature of 60℃, the module outputs full power.Above an ambient temperature of 60℃, it is used with derated power, which is segmented linear power limitation.At an ambient temperature of 75℃, the output power of the module drops to 0.
| P100030G1 | P100040G1 | |
| Dimensions(L×W×H) | 459mm×360mm×85mm | |
| Weight | ~20kg | |
| Peak Effidiency | >96% | |
| Standby Power Consumption | <13W | |
| Cooling Method | ForcedAir Cooling | |
| Communication Method | CAN bus | |
| Maximum Number of Units in Parallel | ≤60 | |

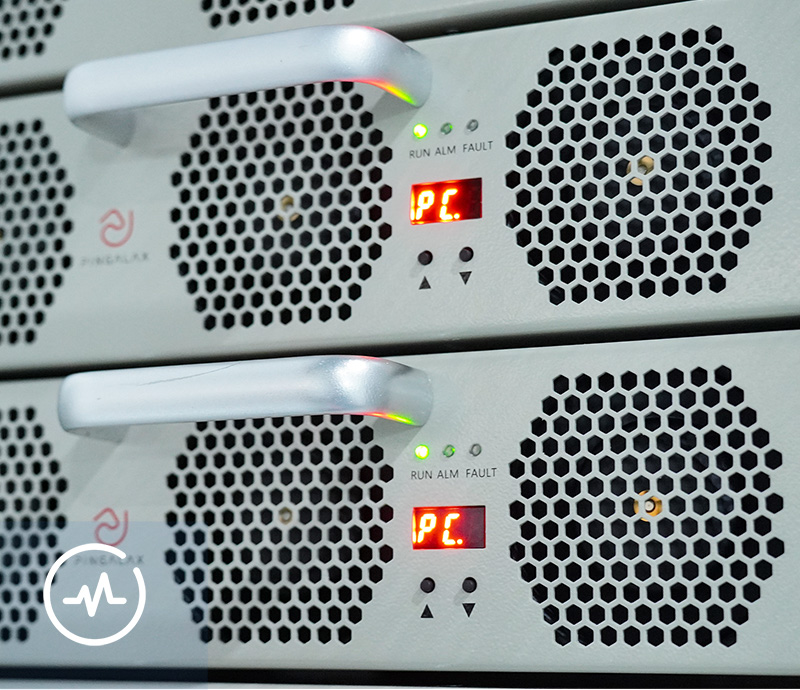

| Indicators | Greer:Normal Operation;Yellow:Protection Aarm;Red Fault Alarm;LED digital display | |
| Rapid Shutdown Function | Support | |
| Main Power Devices | SIC MOSFET;SICSBD | |
20kg
ITHD <=3%
Ripple PTP,=1%
MTBF > 500,000 hours
Rated Current 30-40A
